SUPPORT CORD / BRACING CORD / SURGE ROPE



"UPCORD"

About it :

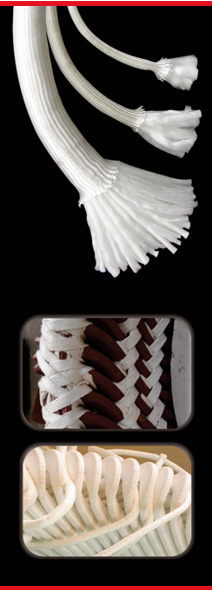

This is a round Rope/Cord with braiding of Glass Fiber/ Polyester Yarn with High quality Round shaped Glass Roving as filler. It is mostly used in binding the overhang coils. It has good absorption property and becomes real hard after curing to give vibration free overhangs.

Raw Material used for Best Results :

  • High tenacity polyester yarn or 'E' Class Fiber Glass Yarn for outer Braiding.
  • High Quality 'E' Class Fiber Glass Round Shaped Roving for best absorption.
  • All Material Used is 100% Imported from Europe only
  • 'E' Class Glass Fiber is only recommended for Electrical Industries, which is treated with Aminosilane and free from Oil Dextrins.

Characteristics:

  • Available in Different Sizes from 03 MM to 60 MM Outer Dia.
  • It’s outer braiding can be supplied in Polyester or Glass Fiber Yarn as per user’s Requirement / Application.
  • Compressibility up to 55% under Pressure of 30 N/cm & regains up to 80% of its original Diameter when released.
  • Best Suitable for VPI and excellent absorption property with all types of varnish / resins.

Application :

"UPCORD" is used to support overhang coils in rotating machines. This product absorbs impregnating varnish / resin and on curing forms a hard support for coil to give vibration free overhang.

PLEASE FEEL FREE TO CONTACT US FOR YOUR CUSTOMISED REQUIREMENTS
